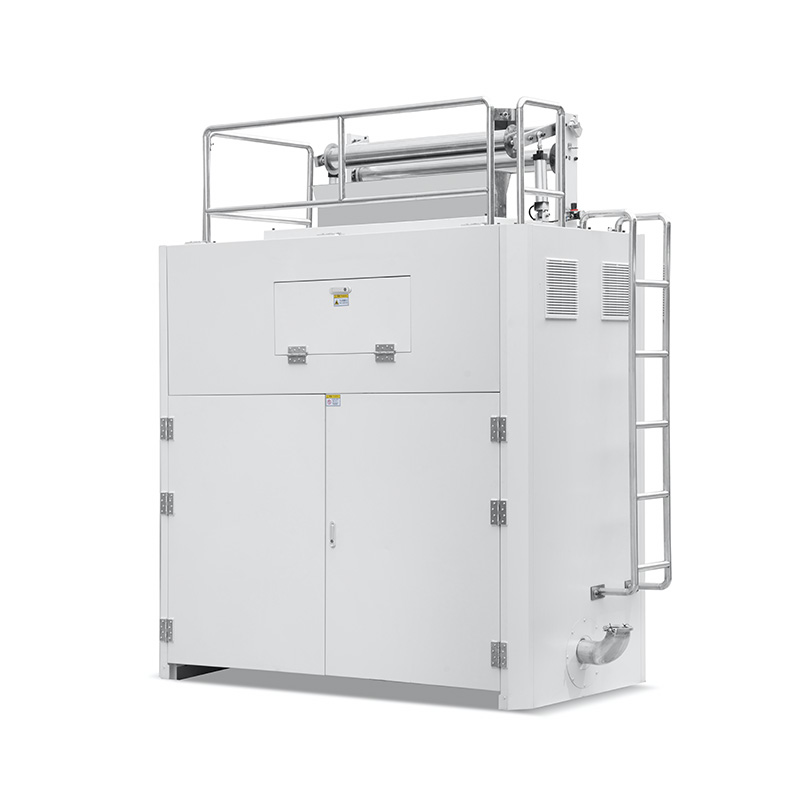

Are you looking to reduce waste and save on material costs in your food packaging line? Our HFSJ In-Line Crusher for Food Thermoforming Waste processes scrap from trays, cups, and clamshells directly on your production line, turning it into reusable pellets. Ideal for producers of PET, PP, and biodegradable packaging, this crusher minimizes waste disposal and raw material costs.
| Quantity: | |
|---|---|
| Inlet Width | 400mm | 900mm | 1000mm | 1250mm |
| Maximum Sheet Width | 350mm | 800mm | 900mm | 1100mm |
| Maximum Sheet Thickness | 2.5mm | 2.5mm | 2.5mm | 2.5mm |
| Max.speed | 25M/min | 25M/min | 35M/min | 35M/min |
| Traction Motor Power | 0.55KW | 1.1KW | 1.5KW | 1.5KW |
| Screen Diameter | φ10.5 | φ10.5 | φ10.5 | φ10.5 |
| Grinding Motor Power | 5.5KW | 15KW | 22KW | 37KW |
| Number Of Fixed Knife | 4PCS (material: DC-53) | |||
| Number Of Rotary Knife | 6PCS (material: DC-53) | |||
| Maximum Output | 100KG/h | 450KG/h | 500KG/h | 750KG/h |
Seamless Production Flow: Install directly below your thermoforming machine to crush scrap as it’s generated. Conveyor belts feed waste into the crusher, thes into 3-5mm pellets ready for regrinding.
High Throughput: Processes up to 150kg/h of waste, keeping pace with medium-speed thermoforming lines. Works with both rigid (PET trays) and flexible (PP lids) materials.
Dual-Rotor Design: Stainless steel blades rotate at 300 RPM, crushing waste without overheating or damaging the resin. Maintains 95% material purity, perfect for closed-loop recycling.
Magnetic Separators: Remove metal contaminants from waste, protecting your extrusion machines from damage. Essential for facilities using recycled materials.
Sound-Insulated Housing: Reduces noise to 75dB, quieter than standard crushers. Safe for use in shared production spaces or near office areas.
Quick-Release Blades: Clean or replace blades in 10 minutes, with all parts compatible with food-safe detergents. Meets BRCGS hygiene standards for food contact environments.
Thermoforming Plants: Recycle scrap from plastic trays used in fresh produce, bakery, and frozen food packaging. Used by companies like Dole to recycle 90% of their production waste.
Biodegradable Packaging: Safely crushes PLA and starch-based trays, allowing reuse in new packaging without compromising material properties.
Retail Packaging Lines: Process scrap from clamshells and blister packs, reducing reliance on virgin resin and lowering material costs by 20%.
Cost Savings: Turn waste into reusable material, reducing raw material spend by up to 30%. The payback period is typically less than 12 months for medium-sized plants.
Sustainability Boost: Show your commitment to circular economy goals—use recycled pellets in new packaging and highlight this in your marketing.
Reliable and Safe: CE and FDA-compliant, with emergency stop buttons and safety interlocks to protect operators. Our team provides free safety training for your staff.
