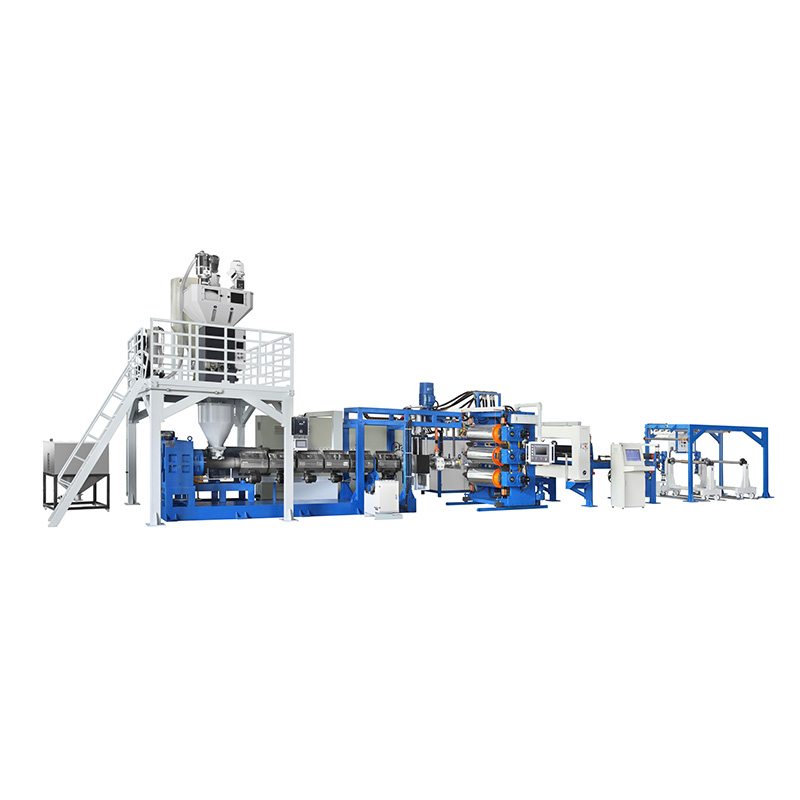

Are you looking for a fast, reliable machine to produce single-layer food films? Our High Speed Single-layer Sheet Extrusion Machine is designed for efficiency, creating films for packaging bags, and shrink labels at high speeds while maintaining precision. Perfect for producers of snack bags, fresh food wraps, and more.
| Quantity: | |
|---|---|
| Model | HFSJ-90 | HFSJ-120 | HFSJ-150 |
| Main extruder diam. | φ90mm | φ120mm | φ150mm |
| Screw L/D | 35:1 | 35:1 | 35:1 |
| Max.capacity PS | 350 kg/h | 550 kg/h | 800 kg/h |
| Extruding Motor Power | 110KW | 160KW | 250KW |
| Max.sheet width | 750 mm | 750 mm | 850 mm |
| Valid T-die width | 850 mm | 850 mm | 950 mm |
| Sheet Thickness Range | 0.3-2.0mm | 0.3-2.5mm | 0.4-2.5mm |
| Roller Diameter | φ400×1000mm | φ500×1000mm | φ600×1200mm |
| Machine Installed Power | 200KW | 250KW | 400KW |
| Overall Dimension | 14×2.5×4m | 15×3×4.5m | 16×3.5×4.8m |
Impressive Throughput: Processes up to 200kg/h of resin, with a film width of 1-1.5 meters. Ideal for high-speed lines needing quick turnaround for large orders.
Smooth Operation: Direct-drive motor with variable speed control (0-100 RPM) ensures stable output, even when switching between materials like PE, PET, or PLA.
Uniform Thickness: Die head with adjustable lips (0.1-3mm) and melt distributors ensure consistent film thickness (±1%), critical for meeting industry standards like FDA for food contact materials.
Temperature Control: Three-zone heating system (feed, compression, metering) with ±1°C accuracy keeps melt viscosity stable, preventing defects like bubbles or thickness variations.
Intuitive Controls: Touchscreen HMI panel with pre-set recipes for common materials, reducing setup time by 40%. No need for complex programming—just select and start.
Easy Maintenance: Quick-release screen changer allows filter replacements in 5 minutes, while the self-cleaning screw reduces resin buildup, cutting downtime for cleaning by 30%.
Food Wraps: Produce Plastic wrap for fruits, vegetables, and deli meats. The machine’s precision ensures uniform thickness for optimal cling and durability.
Snack Bags: Create lightweight, puncture-resistant films for chips, candies, and nuts. High speed means you can meet tight deadlines for large snack brands.
Shrink Labels: Form shrink films for beverage bottles and food containers, with consistent shrinkage rates for a perfect fit.
Energy Efficient: Equipped with IE4 motors, it uses 20% less electricity than older models, saving on operational costs over time.
Material Versatility: Works with a wide range of food-grade materials, from traditional PE to biodegradable PLA. We provide a compatibility guide to help you get started.
Reliable Support: Our technicians offer free installation and training, plus 24/7 remote support to ensure your machine runs at peak performance.
