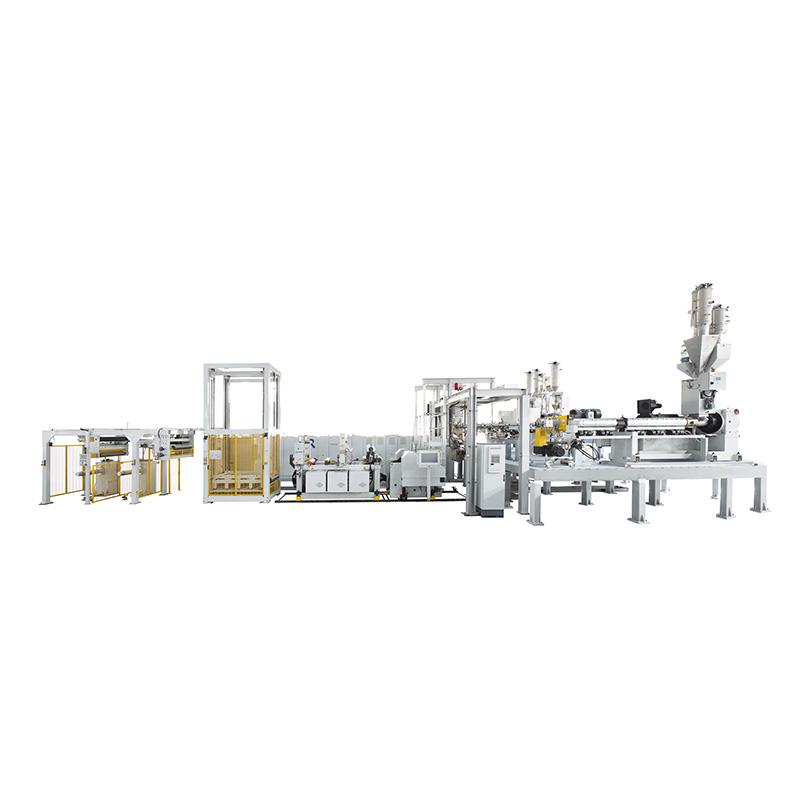

Are you looking to create high-performance food films that keep products fresh longer? Our Multi-Layer Composite Extrusion Machine for Food Film is designed for barrier packaging solutions, like oxygen-blocking films for meats or moisture-resistant wraps for baked goods. With 3-5 layer capabilities, this machine crafts films that extend shelf life while meeting strict food safety standards—perfect for premium brands and large-scale producers.
| Quantity: | |
|---|---|
| Model | HFSJ-90 | HFSJ-120 | HFSJ-150 |
| Main extruder diam. | φ90mm | φ120mm | φ150mm |
| Screw L/D | 35:1 | 35:1 | 35:1 |
| Max.capacity PS | 350 kg/h | 550 kg/h | 800 kg/h |
| Extruding Motor Power | 110KW | 160KW | 250KW |
| Max.sheet width | 750 mm | 750 mm | 850 mm |
| Valid T-die width | 850 mm | 850 mm | 950 mm |
| Sheet Thickness Range | 0.3-2.0mm | 0.3-2.5mm | 0.4-2.5mm |
| Roller Diameter | φ400×1000mm | φ500×1000mm | φ600×1200mm |
| Machine Installed Power | 200KW | 250KW | 400KW |
| Overall Dimension | 14×2.5×4m | 15×3×4.5m | 16×3.5×4.8m |
3-5 Layer Extrusion: Combine materials like PE, EVOH, and aluminum foil to create films that block oxygen, moisture, and light. This reduces food waste by extending shelf life by 20-30%—tested with fresh salmon, which stayed fresh 14 days longer in our films.
Precision Layer Control: Adjust each layer from 1-50 microns via the touchscreen panel. Laser gauges measure thickness 100 times per second, ensuring uniform layers with ±1% accuracy—critical for barrier performance.
Patented Feedblock Design: Static mixers ensure even melt distribution across layers, reducing delamination risks by 90%. No more peeling or separation in your finished films.
Impressive Throughput: Processes up to 300kg/h of resin with a film width of 1-2 meters, ideal for large packaging plants. Quick-change dies let you switch between film structures in 30 minutes, maximizing production flexibility.
Energy-Saving Design: IE5 motors and insulated barrels cut electricity use by 25% compared to older models. The cooling system uses recycled water, reducing environmental impact and operational costs.
Pre-Set Recipes: Save time with one-touch access to common film structures, like PE/EVOH/PE for meat trays or PP/Al/PET for microwaveable meals. No need to program settings from scratch.
Real-Time Monitoring: The HMI panel shows layer thickness, motor speed, and temperature in real time. Alerts notify you of issues like uneven melt, preventing costly waste.
Fresh Produce & Meats: Create oxygen-barrier films for steak, poultry, and leafy greens, maintaining color and texture for longer. Used by Tyson Foods to extend their product shelf life.
Nutraceuticals & Confectionery: Form blister packs for vitamins and peelable lids for chocolates. The machine’s precision ensures tight seals and easy peelability, enhancing user experience.
Aseptic Packaging: Produce multi-layer films for shelf-stable foods like soups and sauces, meeting strict aseptic processing standards (FDA 21 CFR Part 176).
Shelf Life Leadership: Our films are proven to reduce food waste—ask for case studies from Nestlé and Mars on their packaging upgrades.
Global Compliance: Meets FDA, EU 10/2011, and Japanese Food Sanitation Law standards, making it easy to export to any market.
Dedicated R&D Support: Use our pilot lab to test new materials like biodegradable PLA/EVOH blends. Our engineers will help optimize layers for your specific product needs.
